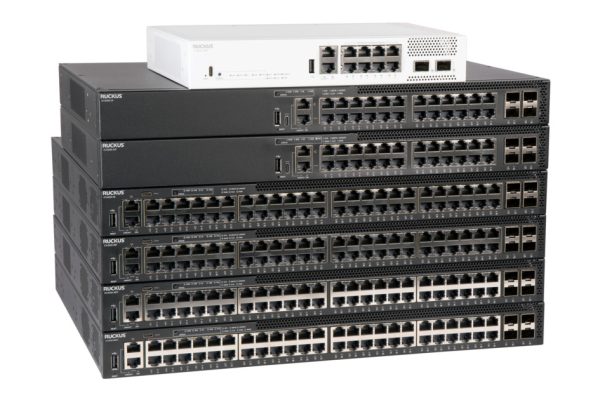

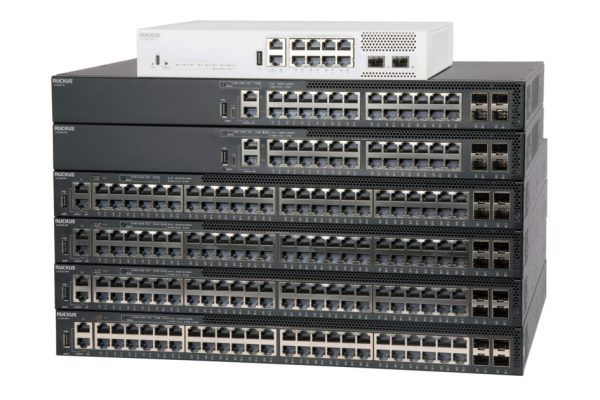

RUCKUS ICX 8200 Switches

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality
at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost effectiveness, and “pay as you grow” scalability of stackable solution.

Description

Benefits

Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room
· Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.

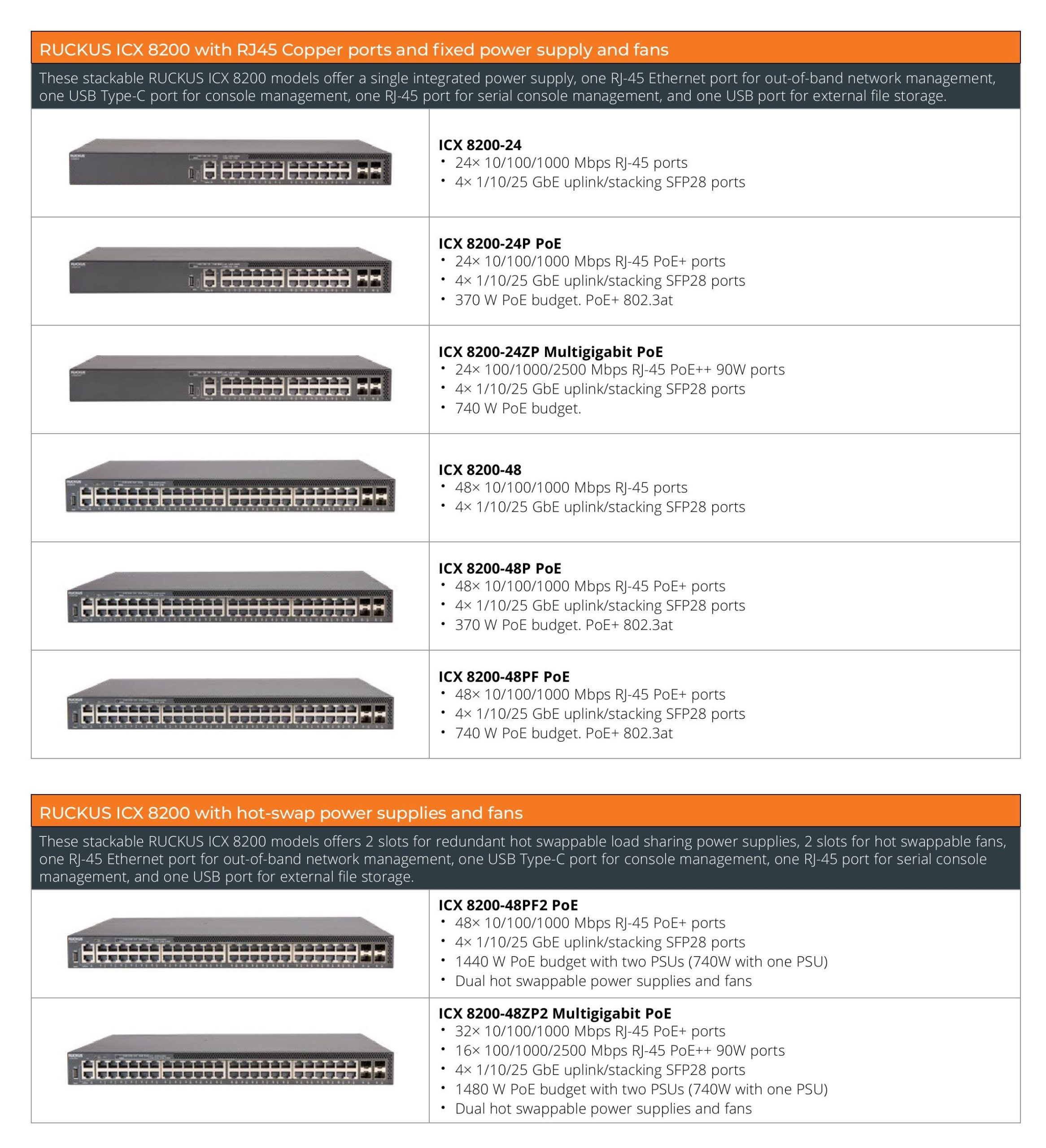

· 8, 24 and 48 Gigabit Ethernet ports
· Up to 24x 1/2.5G Multigigabit RJ45 ports
· Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports

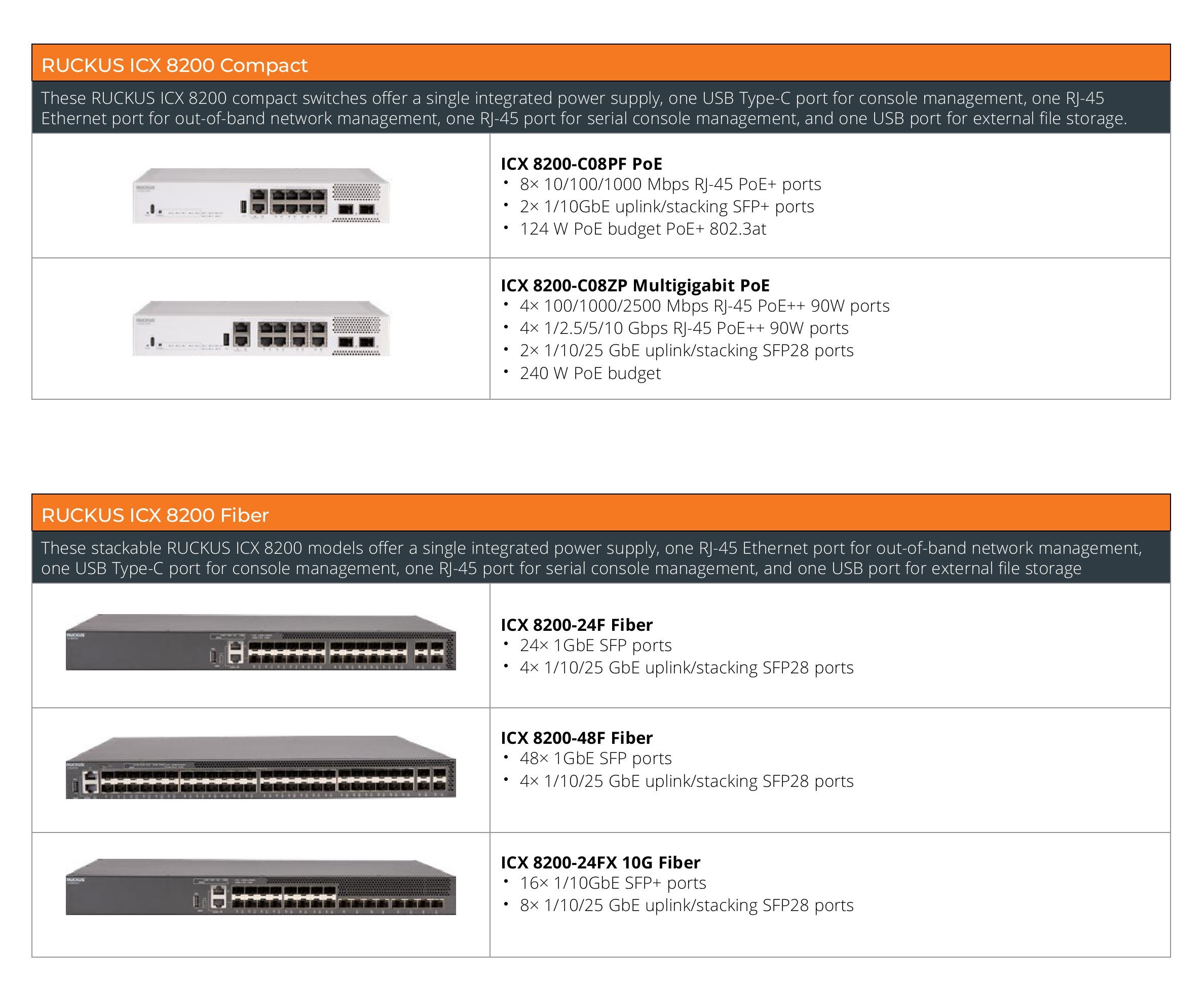

· Up to 48x 1G SFP fiber ports
· Up to 24x 10G SFP+ fiber ports
Power next generation APs and PoE devices
· PoE+ 802.3at, 30W per port on all ports
· PoE++ 802.3bt, 60/90W on multigigabit ports
· Up to 1480W PoE budget with two power supplies
25 GbE uplinks/stacking for maximum performance and future-proofing

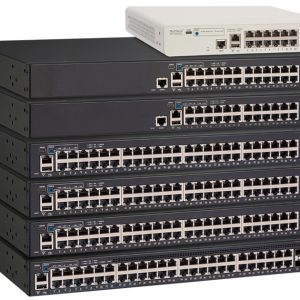

· Stacking comes standard with all ICX 8200
· Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking

Enhanced Security and data privacy
· VXLAN* support for advanced network segmentation and data confidentiality
Advanced L3 routing delivers network design flexibility
· IPv4 and IPv6 L3 routing
· Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
Broad range of unified management options for maximum flexibility
· On Premises: SmartZone
· Cloud Based: RUCKUS Cloud*
· Controllerless: RUCKUS Unleashed*
· RUCKUS Analytics
Enhanced availability
· Redundant, load-sharing power supplies and fans on specific models
Services and Support Included
· 3 Years remote TAC support included with every ICX 8200 model
· Limited lifetime warranty
