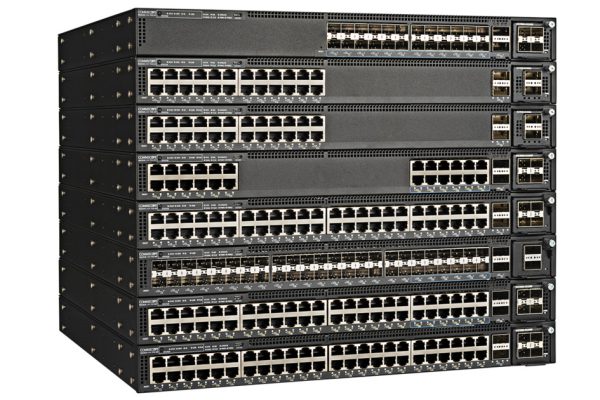

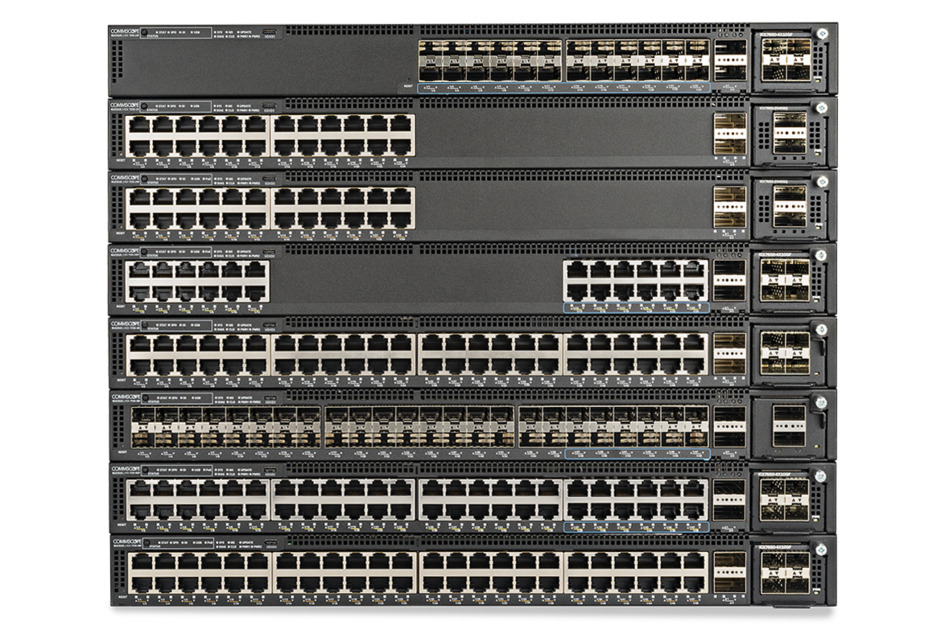

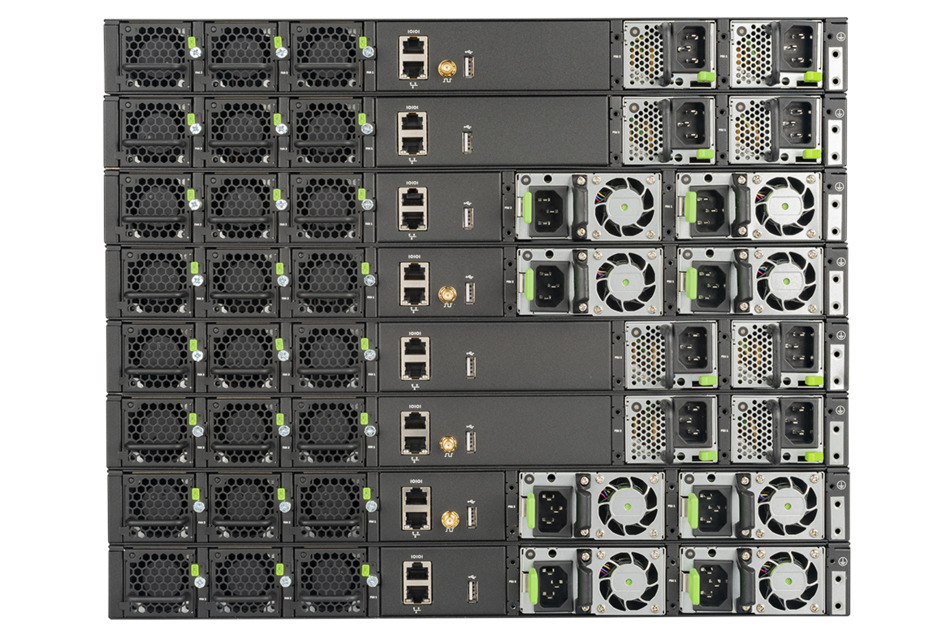

RUCKUS ICX 7550 Switches

Enterprise stackable switch delivers gigabit, multigigabit and fiber connectivity, to support next
generation wireless access
The CommScope RUCKUS® ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It offers market-leading stacking density with up to 12 switches (up to 576 gigabit, multigigabit or fiber ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.

Description

Benefits

Maximum flexibility with gigabit/multigabit access and 1G/10G aggregation covers a broad range of
deployment scenarios

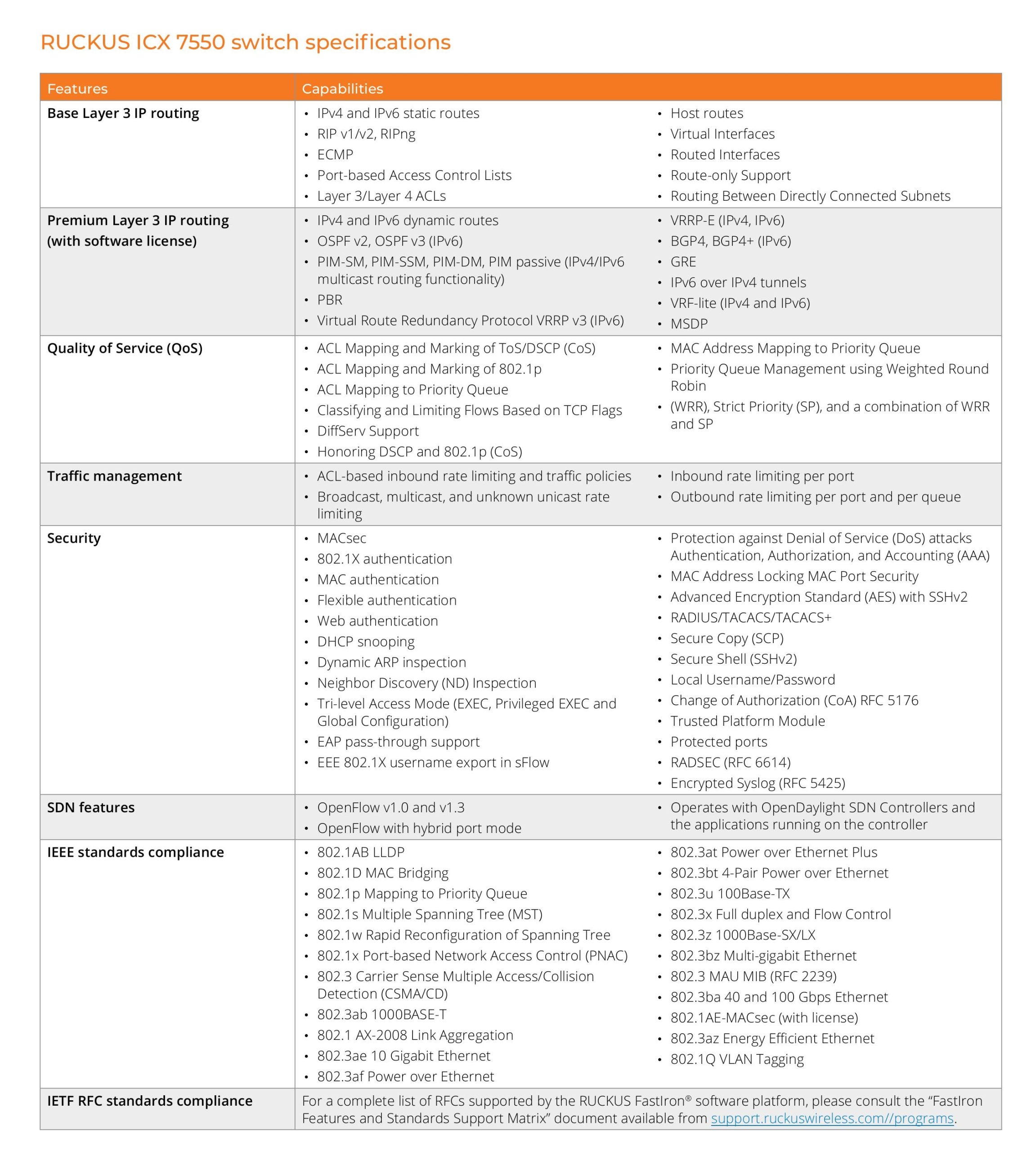

Advanced L3 routing delivers design flexibility
• IPv4 and IPv6
• RIP, BGP, OSPF, VRRP, PIM, PBR, VRF
Optimized for Wi-Fi 6 deployments and beyond
• Up to 12x 1/2.5/5/10G Multigigabit Ethernet ports
• Up to 36x 1/2.5G Multigigabit Ethernet ports

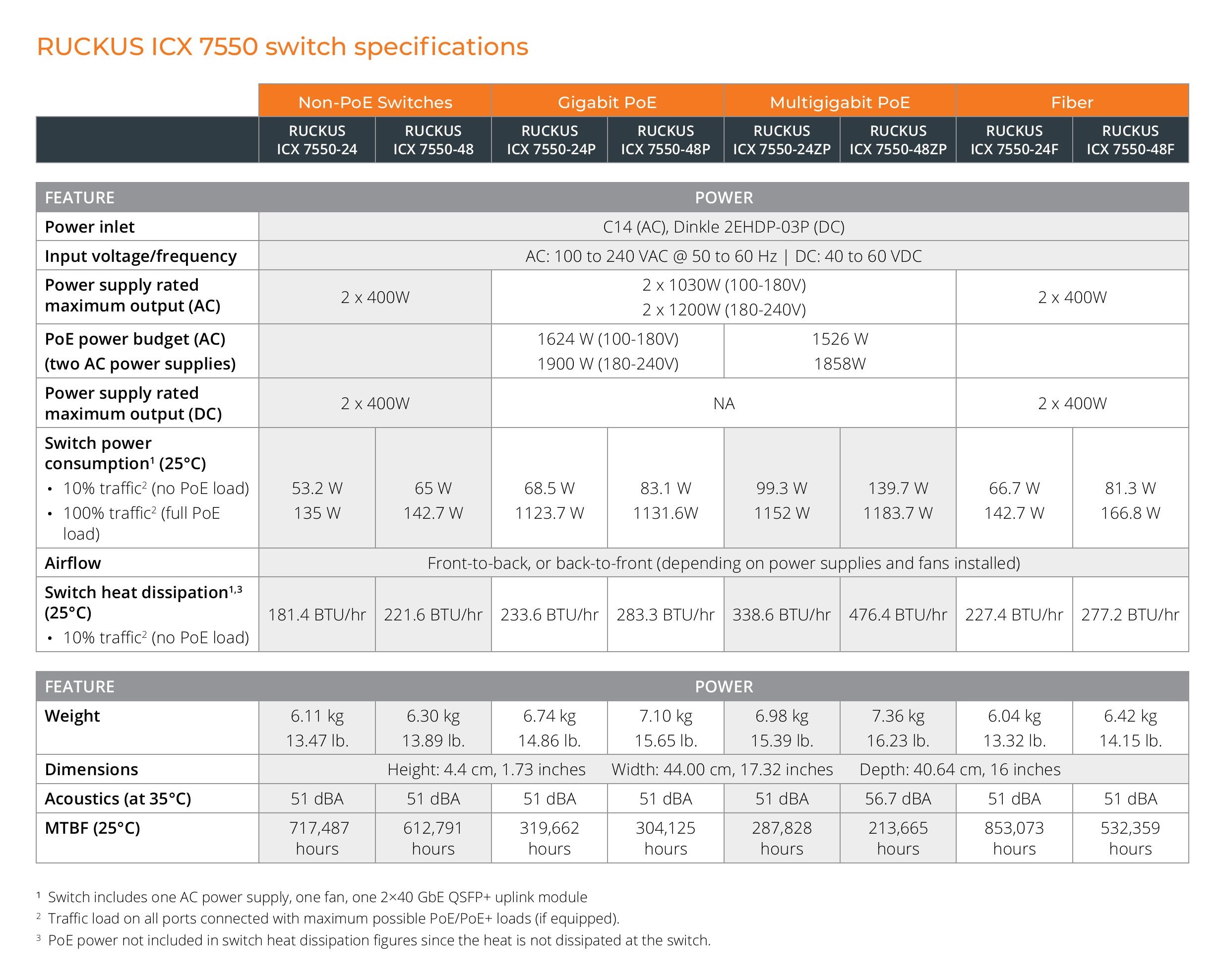

Power next generation PoE devices
• PoE+/802.3bt 60W/90W per port
• Up to 1900W PoE budget with two power supplies

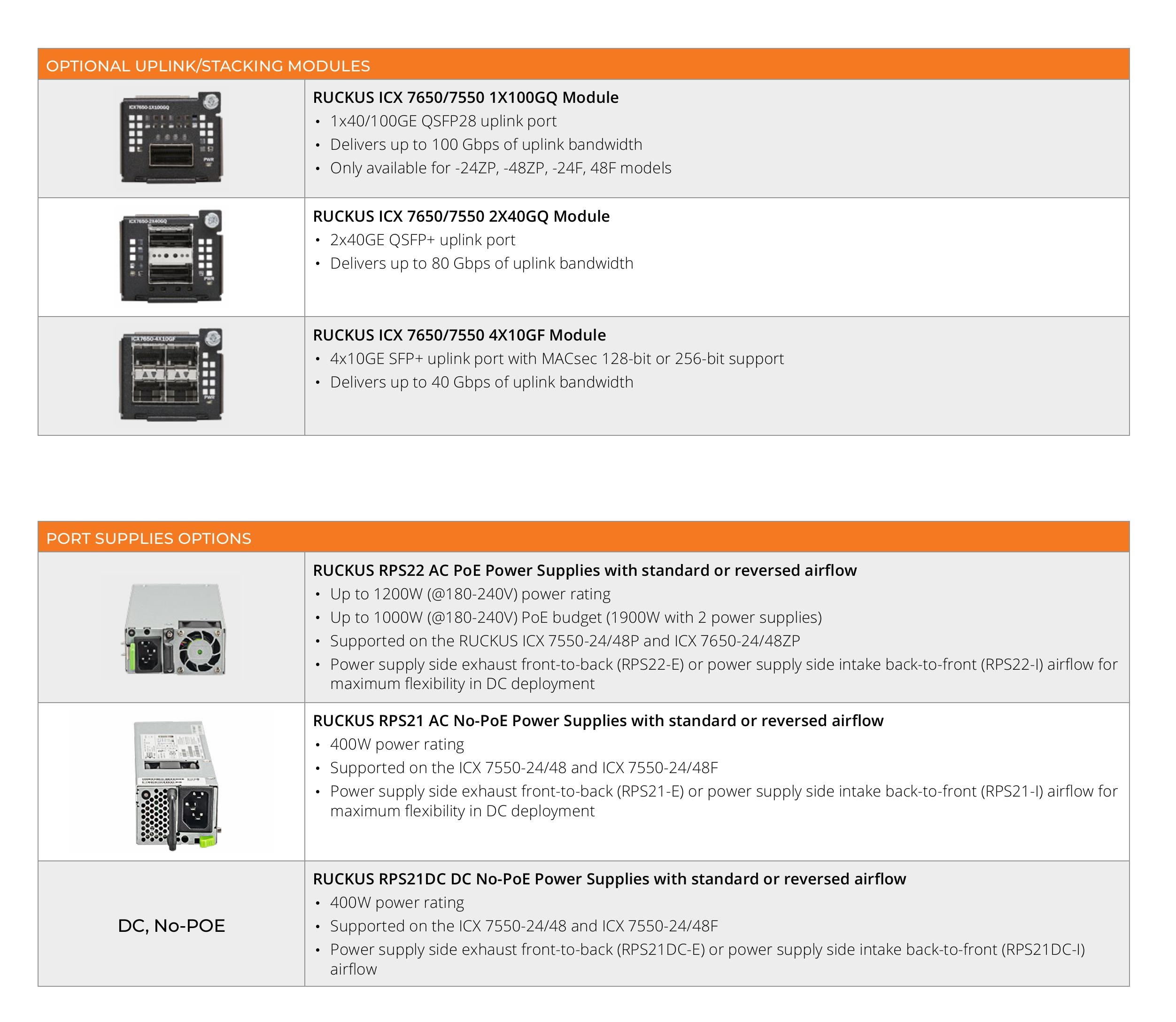

40 GbE and 100 GbE uplinks/stacking for maximum performance and future-proofing
• Up to 2x 100 GbE uplink
• Up to 2x 100 Gbps stacking ports and 1x 100GbE uplink
Security and data privacy
• MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality

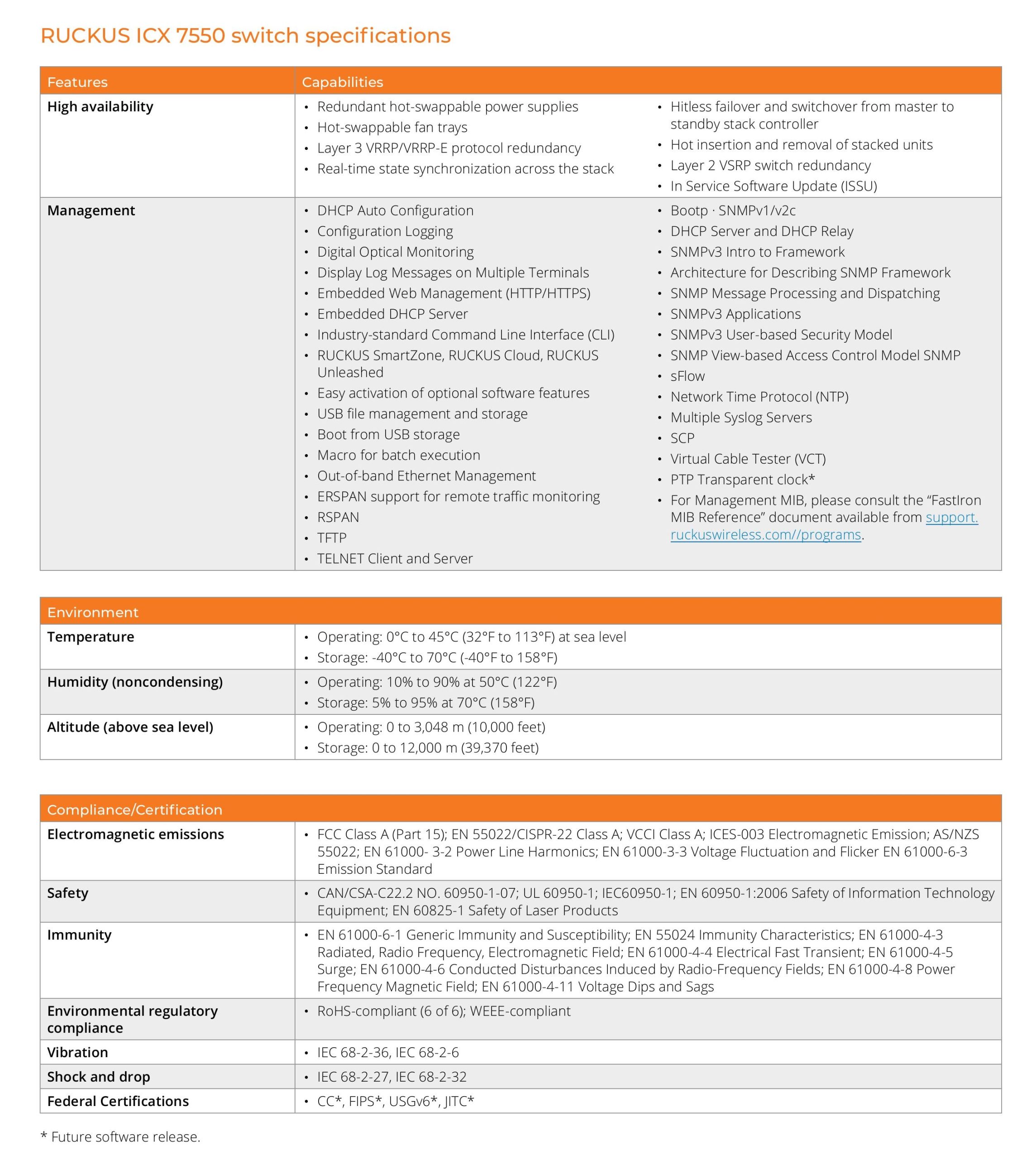

Broad range of unified management options for maximum flexibility
• On Premises: SmartZone
• Cloud Based: RUCKUS Cloud
• Controllerless: RUCKUS Unleashed
