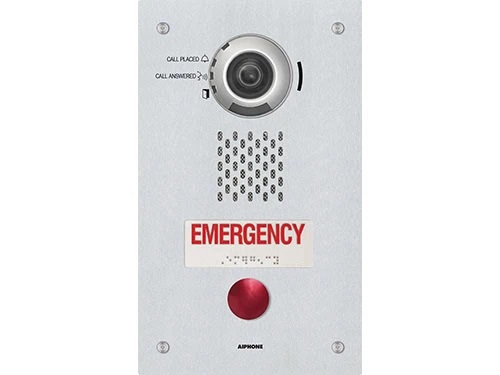

Description
Features
SIP
Peer-to-peer
Emergency
- SIP Compliant
- ONVIF® Profile S Compliant
- Emergency call button
- ADA compliant raised lettering and Braille signage
- PoE with PoE pass through
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- IP65 rated, weather resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
- UL certified
Specs
Power Source
PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) PoE pass through (802.3at Type 2 PoE+)
Power Draw
5.28 Watts
Camera
⅓” CMOS 1.23 megapixel
Min. illumination
5 lux
Audio Codec
G.711 (μ-law, A law), G.722
Video Codec
H.264/AVC, motion JPEG
Volume
73dB-96dB
Port Security
IEEE 802.1X
Operating Temp
-40° – 140°F (-40° – 60°C)
Ingress Protection
IP65
Impact Protection
IK08
Dimensions
11-11⁄16″ H x 7″ W
Mounting
Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
